UN R162 live demo

From

Last amended in 00 series of amendments

1. Scope

Last amended in 00 series of amendments

1. Scope

From

Last amended in 00 series of amendments

This UN Regulation applies to:

Last amended in 00 series of amendments

This UN Regulation applies to:

From

Last amended in 00 series of amendments (supplement 4)

1.1.Approval of immobilizers which are intended to be permanently fitted to vehicles of any category.

[1]

As defined in the Consolidated Resolution on the Construction of Vehicles (R.E.3.), document ECE/TRANS/WP.29/78/Rev.6, para. 2 - https://unece.org/transport/standards/transport/vehicle-regulations-wp29/resolutions.

[2]

Only vehicles with 12 volts electrical systems are considered.

Last amended in 00 series of amendments (supplement 4)

1.1.Approval of immobilizers which are intended to be permanently fitted to vehicles of any category.

[1]

[2]

Only vehicles with 12 volts electrical systems are considered.

From

Last amended in 00 series of amendments (supplement 4)

1.2.Approval of vehicles of category M₁ and those of category N₁ with a maximum mass of not more than 2 tonnes, with regard to their immobilizer(s).

[2]

Only vehicles with 12 volts electrical systems are considered.

Last amended in 00 series of amendments (supplement 4)

1.2.Approval of vehicles of category M₁ and those of category N₁ with a maximum mass of not more than 2 tonnes, with regard to their immobilizer(s).

[2]

Only vehicles with 12 volts electrical systems are considered.

From

Last amended in 00 series of amendments (supplement 4)

1.3.At the request of the manufacturer, Contracting Parties may grant approvals to vehicles of other categories with regard to their immobilizer(s).

Last amended in 00 series of amendments (supplement 4)

1.3.At the request of the manufacturer, Contracting Parties may grant approvals to vehicles of other categories with regard to their immobilizer(s).

From

Last amended in 00 series of amendments (supplement 4)

1.4.This UN Regulation does not apply to radio transmission frequencies, whether or not related to the protection of vehicles against unauthorized use.

Last amended in 00 series of amendments (supplement 4)

1.4.This UN Regulation does not apply to radio transmission frequencies, whether or not related to the protection of vehicles against unauthorized use.

From

Last amended in 00 series of amendments

2. Definitions

Last amended in 00 series of amendments

2. Definitions

From

Last amended in 00 series of amendments

2.1."Component" means a device subject to the requirements of this regulation and intended to be part of a vehicle, which may be type-approved independently of a vehicle where this regulation makes express provisions for so doing;

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

2.2."Separate technical unit" means a device subject to the requirements of this regulation and intended to be part of a vehicle, which may be type-approved separately, but only in relation to one or more specified types of vehicle where this regulation makes express provisions for so doing;

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

2.3."Manufacturer" means the person or body who is responsible to the approval authority for all aspects of the type approval process and for ensuring conformity of production. It is not essential that the person or body is directly involved in all stage of the construction of the vehicle, system, component or separate technical unit which is the subject of the approval process.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

2.4."Immobilizer" means a device which is intended to prevent normal driving away of a vehicle under its own power (prevention of unauthorized use).

Last amended in 00 series of amendments

2.4."Immobilizer" means a device which is intended to prevent normal driving away of a vehicle under its own power (prevention of unauthorized use).

From

Last amended in 00 series of amendments

2.5."Control equipment" means equipment necessary for the setting and/or unsetting of an immobilizer.

Last amended in 00 series of amendments

2.5."Control equipment" means equipment necessary for the setting and/or unsetting of an immobilizer.

From

Last amended in 00 series of amendments

2.6."Status display" means any device intended to indicate the status of the immobilizer (set/unset, change of set to unset and vice versa).

Last amended in 00 series of amendments

2.6."Status display" means any device intended to indicate the status of the immobilizer (set/unset, change of set to unset and vice versa).

From

Last amended in 00 series of amendments

2.7."Set state" means the state in which the vehicle cannot be driven normally under its own power.

Last amended in 00 series of amendments

2.7."Set state" means the state in which the vehicle cannot be driven normally under its own power.

From

Last amended in 00 series of amendments

2.8."Unset state" means the state in which the vehicle can be driven normally.

Last amended in 00 series of amendments

2.8."Unset state" means the state in which the vehicle can be driven normally.

From

Last amended in 00 series of amendments (supplement 1)

2.9."Key" means any mechanical and/or electronic solution designed and constructed to provide a method of operating a locking system which is designed and constructed to be operated by that mechanical and/or electronic solution.

Last amended in 00 series of amendments (supplement 1)

From

Last amended in 00 series of amendments

2.10."Override" means a design feature which locks the immobilizer in the unset condition.

Last amended in 00 series of amendments

2.10."Override" means a design feature which locks the immobilizer in the unset condition.

From

Last amended in 00 series of amendments

2.11."Rolling code" means an electronic code consisting of several elements the combination of which changes at random after each operation of the transmitting unit.

Last amended in 00 series of amendments

2.11."Rolling code" means an electronic code consisting of several elements the combination of which changes at random after each operation of the transmitting unit.

From

Last amended in 00 series of amendments

2.12."Type of immobilizer" means systems which do not differ significantly in such essential aspects as:

Last amended in 00 series of amendments

2.12."Type of immobilizer" means systems which do not differ significantly in such essential aspects as:

From

Last amended in 00 series of amendments

(a)The manufacturer's trade name or mark;

Last amended in 00 series of amendments

(a)The manufacturer's trade name or mark;

From

Last amended in 00 series of amendments

(b)The kind of control equipment;

Last amended in 00 series of amendments

(b)The kind of control equipment;

From

Last amended in 00 series of amendments

(c)The design of their operation on the relevant vehicle system(s) (as referred to in paragraph 5.2.1. below).

Last amended in 00 series of amendments

(c)The design of their operation on the relevant vehicle system(s) (as referred to in paragraph 5.2.1. below).

From

Last amended in 00 series of amendments

2.13."Vehicle type with regard to its immobilizer" means vehicles which do not differ significantly in such essential aspects as:

Last amended in 00 series of amendments

2.13."Vehicle type with regard to its immobilizer" means vehicles which do not differ significantly in such essential aspects as:

From

Last amended in 00 series of amendments

(a)The manufacturer's trade name or mark;

Last amended in 00 series of amendments

(a)The manufacturer's trade name or mark;

From

Last amended in 00 series of amendments

(b)Vehicle features which significantly influence the performances of the immobilizer;

Last amended in 00 series of amendments

(b)Vehicle features which significantly influence the performances of the immobilizer;

From

Last amended in 00 series of amendments

(c)The type and design of the immobilizer.

Last amended in 00 series of amendments

(c)The type and design of the immobilizer.

From

Last amended in 00 series of amendments (supplement 1)

2.14."Primary user" is a user who is able to authorize digital keys. There can be more than one primary users.

Last amended in 00 series of amendments (supplement 1)

2.14."Primary user" is a user who is able to authorize digital keys. There can be more than one primary users.

From

Last amended in 00 series of amendments (supplement 1)

2.15."Digital key" means a key designed to be transferred to multiple devices by the primary user(s) through dedicated processes.

Last amended in 00 series of amendments (supplement 1)

2.15."Digital key" means a key designed to be transferred to multiple devices by the primary user(s) through dedicated processes.

From

Last amended in 00 series of amendments (supplement 1)

2.16."Close proximity" means a distance of less than 6 m.

Last amended in 00 series of amendments (supplement 1)

2.16."Close proximity" means a distance of less than 6 m.

From

Last amended in 00 series of amendments

3. Application for approval

Last amended in 00 series of amendments

3. Application for approval

From

Last amended in 00 series of amendments

3.1.The application for approval of a vehicle or component type with regard to this Regulation shall be submitted by the manufacturer.

Last amended in 00 series of amendments

3.1.The application for approval of a vehicle or component type with regard to this Regulation shall be submitted by the manufacturer.

From

Last amended in 00 series of amendments

3.2.It shall be accompanied by an information document established in accordance with the model shown in Annex 1, and giving a description of the technical characteristics of the immobilizer and the method(s) of installation for each make and type of vehicle on which the immobilizer is intended to be installed.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

3.3.Vehicle(s) / component(s) representative of the type(s) to be approved shall be submitted to the technical service responsible for conducting the approval tests.

Last amended in 00 series of amendments

3.3.Vehicle(s) / component(s) representative of the type(s) to be approved shall be submitted to the technical service responsible for conducting the approval tests.

From

Last amended in 00 series of amendments

4. Approval

Last amended in 00 series of amendments

4. Approval

From

Last amended in 00 series of amendments

4.1.If the type submitted for approval to this Regulation meets the requirements of this Regulation, approval of that type shall be granted.

Last amended in 00 series of amendments

4.1.If the type submitted for approval to this Regulation meets the requirements of this Regulation, approval of that type shall be granted.

From

Last amended in 00 series of amendments

4.2.An approval number shall be assigned to each type approved. Its first two digits (at present 00, corresponding to the Regulation in its original form) shall indicate the series of amendments incorporating the most recent major technical amendment made to the Regulation at the time of issue of the approval. The same Contracting Party shall not assign the same number to another type of vehicle or component as defined in this Regulation.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

4.3.Notice of approval or of extension of approval of a type pursuant to this Regulation shall be communicated to the Contracting Parties to the Agreement applying this Regulation by means of a form conforming to the model in Annex 2 to this Regulation.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

4.4.There shall be affixed, conspicuously and in a readily accessible place specified on the approval form, to every vehicle or component conforming to a type approved under this Regulation, an international approval mark consisting of:

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

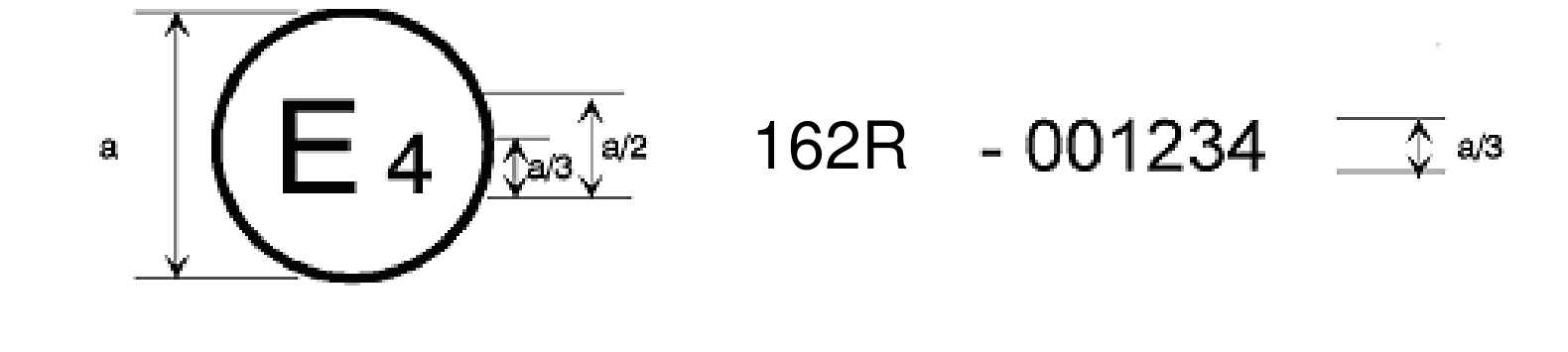

4.4.1.A circle surrounding the letter "E" followed by the distinguishing number of the country which has granted approval, and

[3]

The distinguishing numbers of the Contracting Parties to the 1958 Agreement are reproduced in Annex 3 to the Consolidated Resolution on the Construction of Vehicles (R.E.3), document ECE/TRANS/WP.29/78/Rev. 6, Annex 3-https://unece.org/transport/standards/transport/vehicle-regulations-wp29/resolutions.

Last amended in 00 series of amendments

4.4.1.A circle surrounding the letter "E" followed by the distinguishing number of the country which has granted approval, and

[3]

From

Last amended in 00 series of amendments

4.4.2.The number of this Regulation, followed by the letter "R", a dash and the approval number, to the right of the circle prescribed in paragraph 4.4.1.

Last amended in 00 series of amendments

4.4.2.The number of this Regulation, followed by the letter "R", a dash and the approval number, to the right of the circle prescribed in paragraph 4.4.1.

From

Last amended in 00 series of amendments

4.5.If a type conforms to a type approved, under one or more other Regulations annexed to the Agreement, in the country which has granted approval under this Regulation, the symbol prescribed in paragraph 4.4.1. need not be repeated; in such a case, the Regulation under which approval has been granted in the country which has granted approval under this Regulation shall be placed in vertical columns to the right of the symbol prescribed in paragraph 4.4.1.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

4.6.The approval mark shall be clearly legible and be indelible.

Last amended in 00 series of amendments

4.6.The approval mark shall be clearly legible and be indelible.

From

Last amended in 00 series of amendments

4.7.In the case of a vehicle, the approval mark shall be placed close to or on the vehicle data plate affixed by the manufacturer.

Last amended in 00 series of amendments

4.7.In the case of a vehicle, the approval mark shall be placed close to or on the vehicle data plate affixed by the manufacturer.

From

Last amended in 00 series of amendments

4.8.In the case of a component approved separately as an immobilizer, the approval mark shall be affixed by the manufacturer to the major element(s) of the device. In the case of a component approved as an immobilizer under this regulation and an alarm system under UN Regulation No. 162 or UN Regulation No. 116, Supplement 7 to the original version, or UN Regulation No. 97 Supplement 8 to the 01 series of amendments both approval marks shall be affixed by the manufacturer to the major element(s) of the device.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

4.9.Annex 3 to this Regulation gives examples of arrangements of approval marks.

Last amended in 00 series of amendments

4.9.Annex 3 to this Regulation gives examples of arrangements of approval marks.

From

Last amended in 00 series of amendments

4.10.As an alternative to the approval mark described in paragraph 4.4. above, a certificate of conformity shall be issued for every immobilizer offered for sale.

Last amended in 00 series of amendments

4.10.As an alternative to the approval mark described in paragraph 4.4. above, a certificate of conformity shall be issued for every immobilizer offered for sale.

From

Last amended in 00 series of amendments

Where an immobilizer manufacturer supplies an unmarked immobilizer approved to this Regulation to a vehicle manufacturer, for fitment by that manufacturer as original equipment for a vehicle model or range of vehicle models, the immobilizer manufacturer shall supply a number of copies of the certificate of conformity to the vehicle manufacturer, sufficient for that manufacturer to obtain the vehicle approval of this Regulation.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

If the immobilizer is made up of separate components, its main component(s) shall bear a reference mark and the certificate of conformity shall provide a list of such reference marks.

Last amended in 00 series of amendments

If the immobilizer is made up of separate components, its main component(s) shall bear a reference mark and the certificate of conformity shall provide a list of such reference marks.

From

Last amended in 00 series of amendments

A model of the certificate of conformity is given in Annex4 to this Regulation.

Last amended in 00 series of amendments

A model of the certificate of conformity is given in Annex4 to this Regulation.

From

Last amended in 00 series of amendments

4.11.When an immobilizer, approved to this Regulation or UN Regulation No. 116, Supplement 7 to the original version, or UN Regulation No. 97, Supplement 8 to the 01 series of amendments as a separate technical unit, is installed in a vehicle submitted for approval to this Regulation, tests required to be passed by an immobilizer in order to obtain approval to this Regulation shall not be repeated.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

5. Specifications

Last amended in 00 series of amendments

5. Specifications

From

Last amended in 00 series of amendments

5.1.General Specifications

Last amended in 00 series of amendments

5.1.General Specifications

From

Last amended in 00 series of amendments

5.1.1.It shall be possible to set and unset the immobilizer in accordance with these requirements.

Last amended in 00 series of amendments

5.1.1.It shall be possible to set and unset the immobilizer in accordance with these requirements.

From

Last amended in 00 series of amendments

5.1.2.An immobilizer and its installation shall be so designed that any equipped vehicle continues to meet the technical requirements.

Last amended in 00 series of amendments

5.1.2.An immobilizer and its installation shall be so designed that any equipped vehicle continues to meet the technical requirements.

From

Last amended in 00 series of amendments

5.1.3.It shall not be possible for an immobilizer to enter the set state when the ignition key is in the engine running mode, except when:

Last amended in 00 series of amendments

5.1.3.It shall not be possible for an immobilizer to enter the set state when the ignition key is in the engine running mode, except when:

From

Last amended in 00 series of amendments

(a)The vehicle is equipped or intended to be equipped for ambulance, fire brigade or police purposes; or

Last amended in 00 series of amendments

(a)The vehicle is equipped or intended to be equipped for ambulance, fire brigade or police purposes; or

From

Last amended in 00 series of amendments

(b)The engine is required to:

Last amended in 00 series of amendments

(b)The engine is required to:

From

Last amended in 00 series of amendments

(i)Drive machinery forming part of, or mounted on, the vehicle for purposes other than driving the vehicle; or

Last amended in 00 series of amendments

(i)Drive machinery forming part of, or mounted on, the vehicle for purposes other than driving the vehicle; or

From

Last amended in 00 series of amendments

(ii)Maintain the electrical power of the batteries of the vehicle at a level required for driving that machinery or apparatus;

Last amended in 00 series of amendments

(ii)Maintain the electrical power of the batteries of the vehicle at a level required for driving that machinery or apparatus;

From

Last amended in 00 series of amendments

and the vehicle is stationary with the parking brake applied. When this exception is used, this fact shall be stated under item 2 of the addendum to the communication document (Annex 2 to this Regulation).

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

5.1.4.It shall not be possible to permanently override an immobilizer.

Last amended in 00 series of amendments

5.1.4.It shall not be possible to permanently override an immobilizer.

From

Last amended in 00 series of amendments

5.1.5.The immobilizer shall be designed and built such that when installed it shall not adversely affect the designed function and the safe operation of the vehicle, even in the case of malfunction.

Last amended in 00 series of amendments

5.1.5.The immobilizer shall be designed and built such that when installed it shall not adversely affect the designed function and the safe operation of the vehicle, even in the case of malfunction.

From

Last amended in 00 series of amendments

5.1.6.An immobilizer shall be designed and built such that, when installed on a vehicle, according to the manufacturer's instructions, it cannot rapidly and without attracting attention be rendered ineffective or destroyed by, e.g. the use of low cost easily concealed tools, equipment or fabrications readily available to the public at large. It shall be difficult and time consuming to replace a major component or assembly in order to bypass the immobilizer.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

5.1.7.An immobilizer shall be so designed and built such that when installed as specified by the manufacturer it is able to withstand the environment within the vehicle for a reasonable lifetime (for testing see paragraph 5.3.). More particularly the electrical properties of the on-board circuitry shall not be adversely affected by the addition of the immobilizer (lead cross-sections, contact safety, etc.).

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

5.1.8.An immobilizer may be combined with other vehicle systems or may be integrated into them (e.g. engine management, alarm systems).

Last amended in 00 series of amendments

5.1.8.An immobilizer may be combined with other vehicle systems or may be integrated into them (e.g. engine management, alarm systems).

From

Last amended in 00 series of amendments

5.1.9.It shall not be possible for an immobilizer to prevent the release of the brakes of the vehicle, except in the case of an immobilizer which prevents the release of pneumatically released spring brakes and functions in such a way that in normal operation, or in failure conditions, the technical requirements of UN Regulation No. 13 in force at the time of application for type approval under this Regulation are satisfied.

[4]

As defined in Annex 8 of UN Regulation No. 13, as amended.

Last amended in 00 series of amendments

[4]

As defined in Annex 8 of UN Regulation No. 13, as amended.

From

Last amended in 00 series of amendments

Compliance with this paragraph does not exempt an immobilizer which prevents the release of pneumatically released spring brakes from the technical requirements set out in this Regulation.

Last amended in 00 series of amendments

Compliance with this paragraph does not exempt an immobilizer which prevents the release of pneumatically released spring brakes from the technical requirements set out in this Regulation.

From

Last amended in 00 series of amendments

5.1.10.It shall not be possible for an immobilizer to operate in such a manner as to apply the brakes of the vehicle.

Last amended in 00 series of amendments

5.1.10.It shall not be possible for an immobilizer to operate in such a manner as to apply the brakes of the vehicle.

From

Last amended in 00 series of amendments (supplement 1)

5.1.11.In addition, digital keys shall comply with the provisions of Annex 9.

Last amended in 00 series of amendments (supplement 1)

5.1.11.In addition, digital keys shall comply with the provisions of Annex 9.

From

Last amended in 00 series of amendments

5.2.Particular Specifications

Last amended in 00 series of amendments

5.2.Particular Specifications

From

Last amended in 00 series of amendments

5.2.1.Extent of disablement

Last amended in 00 series of amendments

5.2.1.Extent of disablement

From

Last amended in 00 series of amendments (supplement 2)

5.2.1.1.An immobilizer shall be designed so as to prevent the operation of the vehicle under its own motive power by at least one of the following means:

Last amended in 00 series of amendments (supplement 2)

5.2.1.1.An immobilizer shall be designed so as to prevent the operation of the vehicle under its own motive power by at least one of the following means:

From

Last amended in 00 series of amendments

5.2.1.1.1.disable, in the case of after-market fitting, or vehicle equipped with diesel engine, at least two separate vehicle circuits that are needed for vehicle operation under its own power (e.g. starter motor, ignition, fuel supply, pneumatically released spring brakes, etc.);

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

5.2.1.1.2.interference by code of at least one control unit required for the operation of the vehicle.

Last amended in 00 series of amendments

5.2.1.1.2.interference by code of at least one control unit required for the operation of the vehicle.

From

Last amended in 00 series of amendments

5.2.1.2.An immobilizer for fitment to a vehicle equipped with a catalytic converter shall not cause unburnt fuel to enter the exhaust.

Last amended in 00 series of amendments

5.2.1.2.An immobilizer for fitment to a vehicle equipped with a catalytic converter shall not cause unburnt fuel to enter the exhaust.

From

Last amended in 00 series of amendments

5.2.2.Operating reliability

Last amended in 00 series of amendments

5.2.2.Operating reliability

From

Last amended in 00 series of amendments

Operating reliability shall be achieved by suitable design of the immobilizer, account being taken of specific environmental conditions in the vehicle (see paragraphs 5.1.8. and 5.3.).

Last amended in 00 series of amendments

Operating reliability shall be achieved by suitable design of the immobilizer, account being taken of specific environmental conditions in the vehicle (see paragraphs 5.1.8. and 5.3.).

From

Last amended in 00 series of amendments

5.2.3.Operating safety

Last amended in 00 series of amendments

5.2.3.Operating safety

From

Last amended in 00 series of amendments

It shall be ensured that the immobilizer does not change its state (set/unset) as a result of any of the tests in paragraph 5.3.

Last amended in 00 series of amendments

It shall be ensured that the immobilizer does not change its state (set/unset) as a result of any of the tests in paragraph 5.3.

From

Last amended in 00 series of amendments

5.2.4.Setting of the immobilizer

Last amended in 00 series of amendments

5.2.4.Setting of the immobilizer

From

Last amended in 00 series of amendments

5.2.4.1.The immobilizer shall be set without supplementary action from the driver by at least one of the following means:

Last amended in 00 series of amendments

5.2.4.1.The immobilizer shall be set without supplementary action from the driver by at least one of the following means:

From

Last amended in 00 series of amendments

(a)At rotation of the ignition key into the "0" position in the ignition lock and activation of a door; in addition, immobilizers which unset immediately before or during the normal starting procedure of the vehicle are permitted to set on turning the ignition off;

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

(b)A maximum of 1 minute after removing the key of the ignition lock.

Last amended in 00 series of amendments

(b)A maximum of 1 minute after removing the key of the ignition lock.

From

Last amended in 00 series of amendments

5.2.4.2.If the immobilizer can enter the set state when the ignition key is in the engine running mode as provided for in paragraph 5.1.4., the immobilizer may also be set by the opening of the driver's door and/or the authorised user carrying out a deliberate action.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

5.2.5.Unsetting

Last amended in 00 series of amendments

5.2.5.Unsetting

From

Last amended in 00 series of amendments

5.2.5.1.Unsetting shall be achieved by using one or a combination of the following devices. Other devices with an equivalent level of security giving equivalent performance are permitted.

Last amended in 00 series of amendments

5.2.5.1.Unsetting shall be achieved by using one or a combination of the following devices. Other devices with an equivalent level of security giving equivalent performance are permitted.

From

Last amended in 00 series of amendments

5.2.5.1.1.A key pad for inputting an individually selectable code having at least 10,000 variants.

Last amended in 00 series of amendments

5.2.5.1.1.A key pad for inputting an individually selectable code having at least 10,000 variants.

From

Last amended in 00 series of amendments

5.2.5.1.2.Electrical/electronic device, e.g. remote control, with at least 50,000 variants and shall incorporate rolling codes and/or have a minimum scan time of ten days, e.g. a maximum of 5,000 variants per 24 hours for 50,000 variants minimum.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

5.2.5.1.3.If unsetting can be achieved via a remote control, the immobilizer shall return to the set condition within 5 minutes after unsetting if no supplementary action on the starter circuit has been undertaken.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

5.2.6.Status display

Last amended in 00 series of amendments

5.2.6.Status display

From

Last amended in 00 series of amendments

5.2.6.1.To provide information on the status of the immobilizer (set/unset, change of set to unset and vice versa), optical displays inside and optical signals outside the passenger compartment are allowed. Any optical signal or any use of lighting and light-signalling devices outside the passenger compartment shall fulfil the requirements of Regulation No. 48.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

5.2.6.2.If an indication of short-term "dynamic" processes such as changes from "set" to "unset" and vice versa is provided, it shall be optical, according to paragraph 5.2.6.1. Such optical indication may also be produced by the simultaneous operation of the direction indicators and/or passenger compartment lamp(s), provided that the duration of the optical indication by the direction indicators does not exceed 3 seconds.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

5.3.Operation parameters and test conditions

Last amended in 00 series of amendments

5.3.Operation parameters and test conditions

From

Last amended in 00 series of amendments

All components of the immobilizer shall be submitted to the tests described in Annex 6.

Last amended in 00 series of amendments

All components of the immobilizer shall be submitted to the tests described in Annex 6.

From

Last amended in 00 series of amendments

5.4.Instructions

Last amended in 00 series of amendments

5.4.Instructions

From

Last amended in 00 series of amendments

(Paragraphs 5.4.1. to 5.4.3. for the purposes of aftermarket installation only).

Last amended in 00 series of amendments

(Paragraphs 5.4.1. to 5.4.3. for the purposes of aftermarket installation only).

From

Last amended in 00 series of amendments

Each immobilizer shall be accompanied by:

Last amended in 00 series of amendments

Each immobilizer shall be accompanied by:

From

Last amended in 00 series of amendments

5.4.1.Instructions for installation.

Last amended in 00 series of amendments

5.4.1.Instructions for installation.

From

Last amended in 00 series of amendments

5.4.1.1.The list of vehicles and vehicle models for which the device is intended. This list may be specific or generic, e.g. "all cars with petrol engines and 12 V negative earth batteries".

Last amended in 00 series of amendments

5.4.1.1.The list of vehicles and vehicle models for which the device is intended. This list may be specific or generic, e.g. "all cars with petrol engines and 12 V negative earth batteries".

From

Last amended in 00 series of amendments

5.4.1.2.The method of installation illustrated by photographs and/or very clear drawings.

Last amended in 00 series of amendments

5.4.1.2.The method of installation illustrated by photographs and/or very clear drawings.

From

Last amended in 00 series of amendments

5.4.1.3.Detailed installation instructions provided by the supplier shall be such that when correctly followed by a competent installer, the safety and reliability of the vehicle is not affected.

Last amended in 00 series of amendments

5.4.1.3.Detailed installation instructions provided by the supplier shall be such that when correctly followed by a competent installer, the safety and reliability of the vehicle is not affected.

From

Last amended in 00 series of amendments

5.4.1.4.The supplied installation instructions shall identify the electrical power requirements of the immobilizer and, where relevant, shall advise an increasing of battery size.

Last amended in 00 series of amendments

5.4.1.4.The supplied installation instructions shall identify the electrical power requirements of the immobilizer and, where relevant, shall advise an increasing of battery size.

From

Last amended in 00 series of amendments

5.4.1.5.The supplier shall provide post installation procedures for checking the vehicle. Particular attention shall be drawn to safety related features.

Last amended in 00 series of amendments

5.4.1.5.The supplier shall provide post installation procedures for checking the vehicle. Particular attention shall be drawn to safety related features.

From

Last amended in 00 series of amendments

5.4.2.A blank installation certificate, an example of which is given in Annex 5.

Last amended in 00 series of amendments

5.4.2.A blank installation certificate, an example of which is given in Annex 5.

From

Last amended in 00 series of amendments

5.4.3.A general statement to the immobilizer purchaser calling his attention to the following points:

Last amended in 00 series of amendments

5.4.3.A general statement to the immobilizer purchaser calling his attention to the following points:

From

Last amended in 00 series of amendments

5.4.3.1.The immobilizer should be installed in accordance with the manufacturer's instructions;

Last amended in 00 series of amendments

5.4.3.1.The immobilizer should be installed in accordance with the manufacturer's instructions;

From

Last amended in 00 series of amendments

5.4.3.2.The selection of a good installer is recommended (the immobilizer manufacturer may be contacted to indicate appropriate installers);

Last amended in 00 series of amendments

5.4.3.2.The selection of a good installer is recommended (the immobilizer manufacturer may be contacted to indicate appropriate installers);

From

Last amended in 00 series of amendments

5.4.3.3.The installation certificate supplied with the immobilizer should be completed by the installer.

Last amended in 00 series of amendments

5.4.3.3.The installation certificate supplied with the immobilizer should be completed by the installer.

From

Last amended in 00 series of amendments

5.4.4.Instructions for use.

Last amended in 00 series of amendments

5.4.4.Instructions for use.

From

Last amended in 00 series of amendments

5.4.5.Instructions for maintenance.

Last amended in 00 series of amendments

5.4.5.Instructions for maintenance.

From

Last amended in 00 series of amendments

5.4.6.A general warning regarding the dangers of making any alterations or additions to the immobilizer; such alterations and additions would automatically invalidate the certificate of installation referred to in paragraph 5.4.2. above.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

6. Modification of the type and extension of approval

Last amended in 00 series of amendments

6. Modification of the type and extension of approval

From

Last amended in 00 series of amendments

6.1.Every modification of a vehicle or component type with regard to this Regulation shall be notified to the Type Approval Authority which approved the vehicle or component type. The department may then either:

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

6.1.1.Consider that the modifications made are unlikely to have an appreciable adverse effect and that in any case the component or the vehicle still complies with the requirements, or

Last amended in 00 series of amendments

6.1.1.Consider that the modifications made are unlikely to have an appreciable adverse effect and that in any case the component or the vehicle still complies with the requirements, or

From

Last amended in 00 series of amendments

6.1.2.Require a further report from the technical service responsible for conducting the tests.

Last amended in 00 series of amendments

6.1.2.Require a further report from the technical service responsible for conducting the tests.

From

Last amended in 00 series of amendments

6.2.Confirmation or refusal of approval, specifying the alteration, shall be communicated by the procedure specified in paragraph 4.3. above to the Contracting Parties to the Agreement applying this Regulation.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

6.3.The Type Approval Authority issuing the extension of approval shall assign a serial number to each communication form drawn up for such an extension.

Last amended in 00 series of amendments

6.3.The Type Approval Authority issuing the extension of approval shall assign a serial number to each communication form drawn up for such an extension.

From

Last amended in 00 series of amendments

7. Conformity of production

Last amended in 00 series of amendments

7. Conformity of production

From

Last amended in 00 series of amendments

7.1.Procedures concerning conformity of production shall comply with those set out in the 1958 Agreement, Schedule 1 (E/ECE/TRANS/505/Rev.3) and meet the following requirements:

Last amended in 00 series of amendments

7.1.Procedures concerning conformity of production shall comply with those set out in the 1958 Agreement, Schedule 1 (E/ECE/TRANS/505/Rev.3) and meet the following requirements:

From

Last amended in 00 series of amendments

7.2.For each type of vehicle or component the tests prescribed in the relevant part(s) of this Regulation shall be carried out on a statistically controlled and random basis, in accordance with one of the regular quality assurance procedures;

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

7.3.The Type Approval Authority which has granted approval may at any time verify the conformity of control methods applicable to each production unit. The normal frequency of such inspections shall be once every two years.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

8. Penalties for non-conformity of production

Last amended in 00 series of amendments

8. Penalties for non-conformity of production

From

Last amended in 00 series of amendments

8.1.The approval granted in respect of a vehicle/component type pursuant to this Regulation may be withdrawn if the requirements laid down in paragraph 7. above are not complied with.

Last amended in 00 series of amendments

8.1.The approval granted in respect of a vehicle/component type pursuant to this Regulation may be withdrawn if the requirements laid down in paragraph 7. above are not complied with.

From

Last amended in 00 series of amendments

8.2.If a Contracting Party to the Agreement applying this Regulation withdraws an approval it has previously granted, it shall forthwith so notify the other Contracting Parties applying this Regulation, by means of a form conforming to the model in Annex 2.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

9. Production definitively discontinued

Last amended in 00 series of amendments

9. Production definitively discontinued

From

Last amended in 00 series of amendments

If the holder of the approval completely ceases to manufacture a vehicle/component type approved in accordance with this Regulation, he shall so inform the authority which granted the approval. Upon receiving the relevant communication, that authority shall inform thereof the other Contracting Parties to the Agreement applying this Regulation by means of a form conforming to the model in Annex 2.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

10. Names and addresses of Technical Services responsible for conducting approval tests, and of Type Approval Authorities

Last amended in 00 series of amendments

10. Names and addresses of Technical Services responsible for conducting approval tests, and of Type Approval Authorities

From

Last amended in 00 series of amendments

The Contracting Parties to the Agreement applying this Regulation shall communicate to the United Nations secretariat the names and addresses of the technical services responsible for conducting approval tests and of the Type Approval Authorities which grant approval and to which forms certifying approval or extension or refusal or withdrawal of approval, issued in other countries are to be sent.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

Annex 1a
Information document

Last amended in 00 series of amendments

Annex 1a
Information document

From

Last amended in 00 series of amendments

(Maximum format: A4 (210 mm x 297 mm))

Last amended in 00 series of amendments

(Maximum format: A4 (210 mm x 297 mm))

From

Last amended in 00 series of amendments

Information document

Last amended in 00 series of amendments

Information document

From

Last amended in 00 series of amendments

In accordance with paragraph 5. of UN Regulation No. 162 relating to system type approval of a vehicle type with regard to an immobilizer system

Last amended in 00 series of amendments

In accordance with paragraph 5. of UN Regulation No. 162 relating to system type approval of a vehicle type with regard to an immobilizer system

From

Last amended in 00 series of amendments

1.General

Last amended in 00 series of amendments

1.General

From

Last amended in 00 series of amendments

1.1.Make (trade name of manufacturer):

Last amended in 00 series of amendments

1.1.Make (trade name of manufacturer):

From

Last amended in 00 series of amendments

1.2.Type:

Last amended in 00 series of amendments

1.2.Type:

From

Last amended in 00 series of amendments

1.3.Means of identification of type, if marked on the device (b):

Last amended in 00 series of amendments

1.3.Means of identification of type, if marked on the device (b):

From

Last amended in 00 series of amendments

1.3.1.Location of that marking:

Last amended in 00 series of amendments

1.3.1.Location of that marking:

From

Last amended in 00 series of amendments

1.4.Name and address of manufacturer:

Last amended in 00 series of amendments

1.4.Name and address of manufacturer:

From

Last amended in 00 series of amendments

1.5.Location of the ECE approval mark:

Last amended in 00 series of amendments

1.5.Location of the ECE approval mark:

From

Last amended in 00 series of amendments

1.6.Address(es) of assembly plant(s):

Last amended in 00 series of amendments

1.6.Address(es) of assembly plant(s):

From

Last amended in 00 series of amendments

2.General construction characteristics of the vehicle

Last amended in 00 series of amendments

2.General construction characteristics of the vehicle

From

Last amended in 00 series of amendments

2.1.Photographs and/or drawings of a representative vehicle:

Last amended in 00 series of amendments

2.1.Photographs and/or drawings of a representative vehicle:

From

Last amended in 00 series of amendments

2.2.Hand of drive: left / right (Strike out what does not apply)

Last amended in 00 series of amendments

2.2.Hand of drive: left / right (Strike out what does not apply)

From

Last amended in 00 series of amendments

3.Miscellaneous

Last amended in 00 series of amendments

3.Miscellaneous

From

Last amended in 00 series of amendments

3.1.Vehicle immobilizer:

Last amended in 00 series of amendments

3.1.Vehicle immobilizer:

From

Last amended in 00 series of amendments

3.1.1.type approval number, if available:

Last amended in 00 series of amendments

3.1.1.type approval number, if available:

From

Last amended in 00 series of amendments

3.1.1.1.A detailed description of the vehicle type with regard to the arrangement of the installed Immobilizer illustrated by photographs and/or drawings (where the immobilizer is already type approved as a separate technical unit, reference may be made to the description in paragraph 4.2. of the immobilizers manufacturer's information document): ……………………………………….

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

3.1.2.For immobilizers not yet approved

Last amended in 00 series of amendments

3.1.2.For immobilizers not yet approved

From

Last amended in 00 series of amendments

3.1.2.1.A detailed technical description of the vehicle immobilizer and of the measures taken against inadvertent activation:

Last amended in 00 series of amendments

3.1.2.1.A detailed technical description of the vehicle immobilizer and of the measures taken against inadvertent activation:

From

Last amended in 00 series of amendments

3.1.2.2.The system(s) on which the vehicle immobilizer acts:

Last amended in 00 series of amendments

3.1.2.2.The system(s) on which the vehicle immobilizer acts:

From

Last amended in 00 series of amendments

3.1.2.3.Number of effective interchangeable codes, if applicable:

Last amended in 00 series of amendments

3.1.2.3.Number of effective interchangeable codes, if applicable:

From

Last amended in 00 series of amendments

Annex 1b
Information document

Last amended in 00 series of amendments

Annex 1b
Information document

From

Last amended in 00 series of amendments

(Maximum format: A4 (210 mm x 297 mm))

Last amended in 00 series of amendments

(Maximum format: A4 (210 mm x 297 mm))

From

Last amended in 00 series of amendments

In accordance with paragraph 5. of Regulation No. 162 on uniform technical prescriptions concerning approval of immobilizers and approval of a vehicle with regard to its immobilizer (relating to UN component or separate technical unit type approval of an immobilizer system).

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

1.General

Last amended in 00 series of amendments

1.General

From

Last amended in 00 series of amendments

1.1.Make (trade name of manufacturer):

Last amended in 00 series of amendments

1.1.Make (trade name of manufacturer):

From

Last amended in 00 series of amendments

1.2.Type:

Last amended in 00 series of amendments

1.2.Type:

From

Last amended in 00 series of amendments

1.3.Means of identification of type, if marked on the device:

[(a)]

If the means of identification of type contains characters not relevant to describe the component or separate technical unit types covered in this information document, such characters shall be represented in the documentation by the symbol "?" (e.g. ABC??123??).

Last amended in 00 series of amendments

1.3.Means of identification of type, if marked on the device:

[(a)]

From

Last amended in 00 series of amendments

1.3.1.Location of that marking:

Last amended in 00 series of amendments

1.3.1.Location of that marking:

From

Last amended in 00 series of amendments

1.4.Name and address of manufacturer:

Last amended in 00 series of amendments

1.4.Name and address of manufacturer:

From

Last amended in 00 series of amendments

1.5.Location of the UN approval mark:

Last amended in 00 series of amendments

1.5.Location of the UN approval mark:

From

Last amended in 00 series of amendments

1.6.Address(es) of assembly plant(s):

Last amended in 00 series of amendments

1.6.Address(es) of assembly plant(s):

From

Last amended in 00 series of amendments

2.Description of the device

Last amended in 00 series of amendments

2.Description of the device

From

Last amended in 00 series of amendments

2.1.A detailed technical description of the vehicle immobilizer and of the measures taken against inadvertent activation:

Last amended in 00 series of amendments

2.1.A detailed technical description of the vehicle immobilizer and of the measures taken against inadvertent activation:

From

Last amended in 00 series of amendments

2.2.The vehicle system(s) on which the vehicle immobilizer acts:

Last amended in 00 series of amendments

2.2.The vehicle system(s) on which the vehicle immobilizer acts:

From

Last amended in 00 series of amendments

2.3.Method of setting/unsetting the device:

Last amended in 00 series of amendments

2.3.Method of setting/unsetting the device:

From

Last amended in 00 series of amendments

2.4.Number of effective interchangeable codes, if applicable:

Last amended in 00 series of amendments

2.4.Number of effective interchangeable codes, if applicable:

From

Last amended in 00 series of amendments

2.5.List of main components comprising the device and, if applicable, their reference marks:

Last amended in 00 series of amendments

2.5.List of main components comprising the device and, if applicable, their reference marks:

From

Last amended in 00 series of amendments

3.Drawings

Last amended in 00 series of amendments

3.Drawings

From

Last amended in 00 series of amendments

3.1.Drawings of the main components of the device (the drawings shall show the intended space for UN type approval mark):

Last amended in 00 series of amendments

3.1.Drawings of the main components of the device (the drawings shall show the intended space for UN type approval mark):

From

Last amended in 00 series of amendments

4.Instructions

Last amended in 00 series of amendments

4.Instructions

From

Last amended in 00 series of amendments

4.1.List of vehicles to which the device is intended to be fitted:

Last amended in 00 series of amendments

4.1.List of vehicles to which the device is intended to be fitted:

From

Last amended in 00 series of amendments

4.2.Description of the method of installation illustrated by photographs and/or drawings:

Last amended in 00 series of amendments

4.2.Description of the method of installation illustrated by photographs and/or drawings:

From

Last amended in 00 series of amendments

4.3.Instructions for use:

Last amended in 00 series of amendments

4.3.Instructions for use:

From

Last amended in 00 series of amendments

4.4.Instructions for maintenance, if any:

Last amended in 00 series of amendments

4.4.Instructions for maintenance, if any:

From

Last amended in 00 series of amendments

4.5.Test pulse 5a/5b according to the International Standard ISO 7637‑2:2004: applied / not applied.

Last amended in 00 series of amendments

4.5.Test pulse 5a/5b according to the International Standard ISO 7637‑2:2004: applied / not applied.

From

Last amended in 00 series of amendments (supplement 5)

Annex 2a
Communication

Last amended in 00 series of amendments (supplement 5)

Annex 2a
Communication

From

Last amended in 00 series of amendments

(Maximum format: A4 (210 x 297 mm))

Last amended in 00 series of amendments

(Maximum format: A4 (210 x 297 mm))

From

Last amended in 00 series of amendments

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

[1]

Distinguishing number of the country which has granted/extended/refused/withdrawn approval (see approval provisions in the Regulations).

Last amended in 00 series of amendments

[1]

Distinguishing number of the country which has granted/extended/refused/withdrawn approval (see approval provisions in the Regulations).

From

Last amended in 00 series of amendments

Concerning:Approval granted

[2]

Strike out what does not apply (there are cases where nothing needs to be deleted, when more than one entry is applicable).

Last amended in 00 series of amendments

Concerning:Approval granted

[2]

Strike out what does not apply (there are cases where nothing needs to be deleted, when more than one entry is applicable).

From

Last amended in 00 series of amendments

Approval extended

Last amended in 00 series of amendments

Approval extended

From

Last amended in 00 series of amendments

Approval refused

Last amended in 00 series of amendments

Approval refused

From

Last amended in 00 series of amendments

Approval withdrawn

Last amended in 00 series of amendments

Approval withdrawn

From

Last amended in 00 series of amendments

Production definitively discontinued

Last amended in 00 series of amendments

Production definitively discontinued

From

Last amended in 00 series of amendments (supplement 5)

of a type of vehicle with regard to its immobilizer pursuant to UN Regulation No. 162

Last amended in 00 series of amendments (supplement 5)

of a type of vehicle with regard to its immobilizer pursuant to UN Regulation No. 162

From

Last amended in 00 series of amendments

Approval No.

Last amended in 00 series of amendments

Approval No.

From

Last amended in 00 series of amendments

Section I

Last amended in 00 series of amendments

Section I

From

Last amended in 00 series of amendments

1.General

Last amended in 00 series of amendments

1.General

From

Last amended in 00 series of amendments

1.1.Make (trade name of manufacturer):

Last amended in 00 series of amendments

1.1.Make (trade name of manufacturer):

From

Last amended in 00 series of amendments

1.2.Type:

Last amended in 00 series of amendments

1.2.Type:

From

Last amended in 00 series of amendments

1.3.Means of identification of type, if marked on the vehicle/component/ separate technical unit ²^/:

[(a)]

If the means of identification of type contains characters not relevant to describe the vehicle, component or separate technical unit types covered in this information document, such characters shall be represented in the documentation by the symbol "?" (e.g. ABC??123??).

Last amended in 00 series of amendments

1.3.Means of identification of type, if marked on the vehicle/component/ separate technical unit ²^/:

[(a)]

From

Last amended in 00 series of amendments

1.3.1.Location of that marking:

Last amended in 00 series of amendments

1.3.1.Location of that marking:

From

Last amended in 00 series of amendments

1.4.Category of vehicle :

[(b)]

As defined in the Consolidated Resolution on the Construction of Vehicles (R.E.3.), document ECE/TRANS/WP.29/78/Rev.6, para. 2 -https://unece.org/transport/standards/transport/vehicle-regulations-wp29/resolutions.

Last amended in 00 series of amendments

1.4.Category of vehicle :

[(b)]

As defined in the Consolidated Resolution on the Construction of Vehicles (R.E.3.), document ECE/TRANS/WP.29/78/Rev.6, para. 2 -https://unece.org/transport/standards/transport/vehicle-regulations-wp29/resolutions.

From

Last amended in 00 series of amendments

1.5.Name and address of manufacturer:

Last amended in 00 series of amendments

1.5.Name and address of manufacturer:

From

Last amended in 00 series of amendments

1.6.Location of the ECE approval mark:

Last amended in 00 series of amendments

1.6.Location of the ECE approval mark:

From

Last amended in 00 series of amendments

1.7.Address(es) of assembly plant(s):

Last amended in 00 series of amendments

1.7.Address(es) of assembly plant(s):

From

Last amended in 00 series of amendments

Section II

Last amended in 00 series of amendments

Section II

From

Last amended in 00 series of amendments

1.Additional information (where applicable): see addendum

Last amended in 00 series of amendments

1.Additional information (where applicable): see addendum

From

Last amended in 00 series of amendments

2.Technical service responsible for carrying out the tests:

Last amended in 00 series of amendments

2.Technical service responsible for carrying out the tests:

From

Last amended in 00 series of amendments

3.Date of test report:

Last amended in 00 series of amendments

3.Date of test report:

From

Last amended in 00 series of amendments

4.Number of test report:

Last amended in 00 series of amendments

4.Number of test report:

From

Last amended in 00 series of amendments

5.Remarks (if any): see addendum

Last amended in 00 series of amendments

5.Remarks (if any): see addendum

From

Last amended in 00 series of amendments

6.Place:

Last amended in 00 series of amendments

6.Place:

From

Last amended in 00 series of amendments

7.Date:

Last amended in 00 series of amendments

7.Date:

From

Last amended in 00 series of amendments

8.Signature:

Last amended in 00 series of amendments

8.Signature:

From

Last amended in 00 series of amendments

9.The index to the information package lodged with the approval authority, which may be obtained on request, is attached:

Last amended in 00 series of amendments

9.The index to the information package lodged with the approval authority, which may be obtained on request, is attached:

From

Last amended in 00 series of amendments

Addendum

Last amended in 00 series of amendments

Addendum

From

Last amended in 00 series of amendments

to UN type approval certificate No. ...

Last amended in 00 series of amendments

to UN type approval certificate No. ...

From

Last amended in 00 series of amendments

Concerning the type approval of a vehicle with regard to Regulation No. 162

Last amended in 00 series of amendments

Concerning the type approval of a vehicle with regard to Regulation No. 162

From

Last amended in 00 series of amendments

1.Additional information:

Last amended in 00 series of amendments

1.Additional information:

From

Last amended in 00 series of amendments

1.1.Brief description of the immobilizer:

Last amended in 00 series of amendments

1.1.Brief description of the immobilizer:

From

Last amended in 00 series of amendments

2.Remarks:

Last amended in 00 series of amendments

2.Remarks:

From

Last amended in 00 series of amendments (supplement 5)

Annex 2b
Communication

Last amended in 00 series of amendments (supplement 5)

Annex 2b
Communication

From

Last amended in 00 series of amendments

(Maximum format: A4 (210 x 297 mm))

Last amended in 00 series of amendments

(Maximum format: A4 (210 x 297 mm))

From

Last amended in 00 series of amendments

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

[1]

Distinguishing number of the country which has granted/extended/refused/withdrawn approval (see approval provisions in the Regulations).

Last amended in 00 series of amendments

[1]

Distinguishing number of the country which has granted/extended/refused/withdrawn approval (see approval provisions in the Regulations).

From

Last amended in 00 series of amendments

Concerning:Approval granted

[2]

Strike out what does not apply (there are cases where nothing needs to be deleted, when more than one entry is applicable).

Last amended in 00 series of amendments

Concerning:Approval granted

[2]

Strike out what does not apply (there are cases where nothing needs to be deleted, when more than one entry is applicable).

From

Last amended in 00 series of amendments

Approval extended

Last amended in 00 series of amendments

Approval extended

From

Last amended in 00 series of amendments

Approval refused

Last amended in 00 series of amendments

Approval refused

From

Last amended in 00 series of amendments

Approval withdrawn

Last amended in 00 series of amendments

Approval withdrawn

From

Last amended in 00 series of amendments

Production definitively discontinued

Last amended in 00 series of amendments

Production definitively discontinued

From

Last amended in 00 series of amendments (supplement 5)

of a type of component or separate technical unit as an immobilizer pursuant to UN Regulation No. 162

Last amended in 00 series of amendments (supplement 5)

of a type of component or separate technical unit as an immobilizer pursuant to UN Regulation No. 162

From

Last amended in 00 series of amendments

Approval No.

Last amended in 00 series of amendments

Approval No.

From

Last amended in 00 series of amendments

Reason for extension:

Last amended in 00 series of amendments

Reason for extension:

From

Last amended in 00 series of amendments

Section I

Last amended in 00 series of amendments

Section I

From

Last amended in 00 series of amendments

1.General

Last amended in 00 series of amendments

1.General

From

Last amended in 00 series of amendments

1.1.Make (trade name of manufacturer):

Last amended in 00 series of amendments

1.1.Make (trade name of manufacturer):

From

Last amended in 00 series of amendments

1.2.Type:

Last amended in 00 series of amendments

1.2.Type:

From

Last amended in 00 series of amendments

1.3.Means of identification of type, if marked on the device :

[(a)]

Last amended in 00 series of amendments

1.3.Means of identification of type, if marked on the device :

[(a)]

From

Last amended in 00 series of amendments

1.3.1.Location of that marking:

Last amended in 00 series of amendments

1.3.1.Location of that marking:

From

Last amended in 00 series of amendments

1.4.Name and address of manufacturer:

Last amended in 00 series of amendments

1.4.Name and address of manufacturer:

From

Last amended in 00 series of amendments

1.5.Location of the ECE approval mark:

Last amended in 00 series of amendments

1.5.Location of the ECE approval mark:

From

Last amended in 00 series of amendments

1.6.Address(es) of assembly plant(s):

Last amended in 00 series of amendments

1.6.Address(es) of assembly plant(s):

From

Last amended in 00 series of amendments

Section II

Last amended in 00 series of amendments

Section II

From

Last amended in 00 series of amendments

1.Additional information (where applicable): see addendum

Last amended in 00 series of amendments

1.Additional information (where applicable): see addendum

From

Last amended in 00 series of amendments

2.Technical service responsible for carrying out the tests:

Last amended in 00 series of amendments

2.Technical service responsible for carrying out the tests:

From

Last amended in 00 series of amendments

3.Date of test report:

Last amended in 00 series of amendments

3.Date of test report:

From

Last amended in 00 series of amendments

4.Number of test report:

Last amended in 00 series of amendments

4.Number of test report:

From

Last amended in 00 series of amendments

5.Remarks (if any): see addendum

Last amended in 00 series of amendments

5.Remarks (if any): see addendum

From

Last amended in 00 series of amendments

6.Place:

Last amended in 00 series of amendments

6.Place:

From

Last amended in 00 series of amendments

7.Date:

Last amended in 00 series of amendments

7.Date:

From

Last amended in 00 series of amendments

8.Signature:

Last amended in 00 series of amendments

8.Signature:

From

Last amended in 00 series of amendments

9.The index to the information package lodged with the approval authority, which may be obtained on request, is attached.

Last amended in 00 series of amendments

9.The index to the information package lodged with the approval authority, which may be obtained on request, is attached.

From

Last amended in 00 series of amendments

Addendum

Last amended in 00 series of amendments

Addendum

From

Last amended in 00 series of amendments

to UN type approval certificate No. …

Last amended in 00 series of amendments

to UN type approval certificate No. …

From

Last amended in 00 series of amendments

concerning the type approval of an immobilizer with regard to Regulation No. 162

Last amended in 00 series of amendments

concerning the type approval of an immobilizer with regard to Regulation No. 162

From

Last amended in 00 series of amendments

1.Additional information:

Last amended in 00 series of amendments

1.Additional information:

From

Last amended in 00 series of amendments

1.1.Brief description of the immobilizer:

Last amended in 00 series of amendments

1.1.Brief description of the immobilizer:

From

Last amended in 00 series of amendments

1.2.List of vehicles to which the immobilizer is intended to be fitted:

Last amended in 00 series of amendments

1.2.List of vehicles to which the immobilizer is intended to be fitted:

From

Last amended in 00 series of amendments

1.3.Types of vehicles on which the immobilizer has been tested:

Last amended in 00 series of amendments

1.3.Types of vehicles on which the immobilizer has been tested:

From

Last amended in 00 series of amendments

1.4.List of main components, duly identified, comprising the immobilizer:

Last amended in 00 series of amendments

1.4.List of main components, duly identified, comprising the immobilizer:

From

Last amended in 00 series of amendments

2.Remarks:

Last amended in 00 series of amendments

2.Remarks:

From

Last amended in 00 series of amendments

Annex 3
Arrangements of approval marks

Last amended in 00 series of amendments

Annex 3
Arrangements of approval marks

From

Last amended in 00 series of amendments

Figure 1

Last amended in 00 series of amendments

Figure 1

From

Last amended in 00 series of amendments

(see paragraph 4.2. of this Regulation)

Last amended in 00 series of amendments

(see paragraph 4.2. of this Regulation)

From

Last amended in 00 series of amendments

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

a = 8 mm min

Last amended in 00 series of amendments

a = 8 mm min

From

Last amended in 00 series of amendments

The above approval mark figure 1 affixed to a vehicle shows that the type concerned was approved in the Netherlands (E 4) pursuant to UN Regulation No. 162 under approval No. 001234. The first two digits (00) of the approval number indicate that the approval was granted in accordance with the requirements of UN Regulation No. 162 in its original form.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

Annex 4
Model of certificate of conformity

Last amended in 00 series of amendments

Annex 4
Model of certificate of conformity

From

Last amended in 00 series of amendments

I the undersigned

Last amended in 00 series of amendments

I the undersigned

From

Last amended in 00 series of amendments

(surname and name)

Last amended in 00 series of amendments

(surname and name)

From

Last amended in 00 series of amendments

Testify that the vehicle immobilizer described below:

Last amended in 00 series of amendments

Testify that the vehicle immobilizer described below:

From

Last amended in 00 series of amendments

Make:

Last amended in 00 series of amendments

Make:

From

Last amended in 00 series of amendments

Type:

Last amended in 00 series of amendments

Type:

From

Last amended in 00 series of amendments

is in total conformity with the type approved

Last amended in 00 series of amendments

is in total conformity with the type approved

From

Last amended in 00 series of amendments

aton

Last amended in 00 series of amendments

aton

From

Last amended in 00 series of amendments

(place of approval)(date)

Last amended in 00 series of amendments

(place of approval)(date)

From

Last amended in 00 series of amendments

as described in the communication form bearing approval No.

Last amended in 00 series of amendments

as described in the communication form bearing approval No.

From

Last amended in 00 series of amendments

Identification of the main component(s):

Last amended in 00 series of amendments

Identification of the main component(s):

From

Last amended in 00 series of amendments

Component:Marking:

Last amended in 00 series of amendments

Component:Marking:

From

Last amended in 00 series of amendments

Done at:on:

Last amended in 00 series of amendments

Done at:on:

From

Last amended in 00 series of amendments

Manufacturer's full address and stamp:

Last amended in 00 series of amendments

Manufacturer's full address and stamp:

From

Last amended in 00 series of amendments

Signature :(please specify position).

Last amended in 00 series of amendments

Signature :(please specify position).

From

Last amended in 00 series of amendments

Annex 5
Model of installation certificate

Last amended in 00 series of amendments

Annex 5
Model of installation certificate

From

Last amended in 00 series of amendments

I the undersigned

Last amended in 00 series of amendments

I the undersigned

From

Last amended in 00 series of amendments

professional installer, certify that the installation of the immobilizer described below has been carried out by myself pursuant to the mounting instructions supplied by the manufacturer of the system.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

Description of the vehicle

Last amended in 00 series of amendments

Description of the vehicle

From

Last amended in 00 series of amendments

Make:

Last amended in 00 series of amendments

Make:

From

Last amended in 00 series of amendments

Type:

Last amended in 00 series of amendments

Type:

From

Last amended in 00 series of amendments

Serial number:

Last amended in 00 series of amendments

Serial number:

From

Last amended in 00 series of amendments

Registration number:

Last amended in 00 series of amendments

Registration number:

From

Last amended in 00 series of amendments

Description of the immobilizer

Last amended in 00 series of amendments

Description of the immobilizer

From

Last amended in 00 series of amendments

Make:

Last amended in 00 series of amendments

Make:

From

Last amended in 00 series of amendments

Type:

Last amended in 00 series of amendments

Type:

From

Last amended in 00 series of amendments

Approval number:

Last amended in 00 series of amendments

Approval number:

From

Last amended in 00 series of amendments

Done at:on:

Last amended in 00 series of amendments

Done at:on:

From

Last amended in 00 series of amendments

Installer's full address and stamp:

Last amended in 00 series of amendments

Installer's full address and stamp:

From

Last amended in 00 series of amendments

Signature:(please specify position)

Last amended in 00 series of amendments

Signature:(please specify position)

From

Last amended in 00 series of amendments

Annex 6
Operation parameters and test conditions for an immobilizer

Last amended in 00 series of amendments

Annex 6
Operation parameters and test conditions for an immobilizer

From

Last amended in 00 series of amendments

1.Operation parameters

Last amended in 00 series of amendments

1.Operation parameters

From

Last amended in 00 series of amendments

The requirements below do not apply to:

Last amended in 00 series of amendments

The requirements below do not apply to:

From

Last amended in 00 series of amendments (supplement 4)

(a)Those components that are fitted and tested as part of the vehicle, whether or not an immobilizer is fitted (e.g. lamps, alarm system);

Last amended in 00 series of amendments (supplement 4)

(a)Those components that are fitted and tested as part of the vehicle, whether or not an immobilizer is fitted (e.g. lamps, alarm system);

From

Last amended in 00 series of amendments (supplement 4)

(b)Those components that have previously been tested as part of the vehicle and documentary evidence has been provided, or

Last amended in 00 series of amendments (supplement 4)

(b)Those components that have previously been tested as part of the vehicle and documentary evidence has been provided, or

From

Last amended in 00 series of amendments (supplement 4)

(c)Components that are not embedded in the vehicle, e.g. keys.

Last amended in 00 series of amendments (supplement 4)

(c)Components that are not embedded in the vehicle, e.g. keys.

From

Last amended in 00 series of amendments

All components of the immobilizer shall operate without any failure under the following conditions.

Last amended in 00 series of amendments

All components of the immobilizer shall operate without any failure under the following conditions.

From

Last amended in 00 series of amendments

1.1.Climatic conditions

Last amended in 00 series of amendments

1.1.Climatic conditions

From

Last amended in 00 series of amendments

Two classes of environmental temperature are defined as follows:

Last amended in 00 series of amendments

Two classes of environmental temperature are defined as follows:

From

Last amended in 00 series of amendments

(a)-40°C to +85°C for parts to be fitted in the passenger or luggage compartment,

Last amended in 00 series of amendments

(a)-40°C to +85°C for parts to be fitted in the passenger or luggage compartment,

From

Last amended in 00 series of amendments

(b)-40°C to +125°C for parts to be fitted in the engine compartment unless otherwise specified.

Last amended in 00 series of amendments

(b)-40°C to +125°C for parts to be fitted in the engine compartment unless otherwise specified.

From

Last amended in 00 series of amendments

1.2.Degree of protection for installation

Last amended in 00 series of amendments

1.2.Degree of protection for installation

From

Last amended in 00 series of amendments

The following degrees of protection in accordance with IEC Publication 529 1989 shall be provided:

Last amended in 00 series of amendments

The following degrees of protection in accordance with IEC Publication 529 1989 shall be provided:

From

Last amended in 00 series of amendments

(a)IP 40 for parts to be fitted in the passenger compartment,

Last amended in 00 series of amendments

(a)IP 40 for parts to be fitted in the passenger compartment,

From

Last amended in 00 series of amendments

(b)IP 42 for parts to be fitted in the passenger compartment of roadsters/convertibles and cars with moveable roof-panels if the installation location requires a higher degree of protection than IP 40,

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

(c)IP 54 for all other parts.

Last amended in 00 series of amendments

(c)IP 54 for all other parts.

From

Last amended in 00 series of amendments

The immobilizer manufacturer shall specify in the installation instructions any restrictions on the positioning of any part of the installation with respect to dust, water and temperature.

Last amended in 00 series of amendments

The immobilizer manufacturer shall specify in the installation instructions any restrictions on the positioning of any part of the installation with respect to dust, water and temperature.

From

Last amended in 00 series of amendments

1.3.Weatherability

Last amended in 00 series of amendments

1.3.Weatherability

From

Last amended in 00 series of amendments

7 days according to IEC 68-2-30-1980.

Last amended in 00 series of amendments

7 days according to IEC 68-2-30-1980.

From

Last amended in 00 series of amendments

1.4.Electrical conditions

Last amended in 00 series of amendments

1.4.Electrical conditions

From

Last amended in 00 series of amendments

Rated supply voltage: 12 V

Last amended in 00 series of amendments

Rated supply voltage: 12 V

From

Last amended in 00 series of amendments

Operation supply voltage range: from 9 V to 15 V in the temperature range according to paragraph 1.1.1

Last amended in 00 series of amendments

Operation supply voltage range: from 9 V to 15 V in the temperature range according to paragraph 1.1.1

From

Last amended in 00 series of amendments

Time allowance for excess voltages at 23°C:

Last amended in 00 series of amendments

Time allowance for excess voltages at 23°C:

From

Last amended in 00 series of amendments

U = 18 V, max. 1 h

Last amended in 00 series of amendments

U = 18 V, max. 1 h

From

Last amended in 00 series of amendments

U = 24 V, max. 1 min.

Last amended in 00 series of amendments

U = 24 V, max. 1 min.

From

Last amended in 00 series of amendments

2.Test conditions

Last amended in 00 series of amendments

2.Test conditions

From

Last amended in 00 series of amendments

All the tests shall be carried out in sequence on a single immobilizer. However, at the discretion of the Type Approval Authority, other samples may be used if this is not considered to affect the results of the other tests.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

2.1.Normal test conditions

Last amended in 00 series of amendments

2.1.Normal test conditions

From

Last amended in 00 series of amendments

Voltage U = (12 ± 0.2) V

Last amended in 00 series of amendments

Voltage U = (12 ± 0.2) V

From

Last amended in 00 series of amendments

Temperature T = (23 ± 5)°C

Last amended in 00 series of amendments

Temperature T = (23 ± 5)°C

From

Last amended in 00 series of amendments

3.Operation test

Last amended in 00 series of amendments

3.Operation test

From

Last amended in 00 series of amendments

All components of the immobilizer shall comply with prescriptions given in paragraphs 3.2. to 3.9. of this Regulation.

Last amended in 00 series of amendments

All components of the immobilizer shall comply with prescriptions given in paragraphs 3.2. to 3.9. of this Regulation.

From

Last amended in 00 series of amendments

3.1.Upon completion of all the tests specified below, the immobilizer shall be tested under the normal test conditions specified in paragraph 2.1. of this Regulation to check that it continues to function normally. Where necessary, fuses may be replaced prior to the test.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

If some of the tests required in each of these paragraphs prior to the operation tests are performed in series on a single immobilizer, the operation test may be carried out one time only after the chosen tests are completed instead of performing the operation tests required in the paragraphs after each of the chosen tests. Vehicle manufacturers and suppliers have to guarantee satisfactory results only on non-accumulated procedures.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

3.2.Resistance to temperature and voltage changes

Last amended in 00 series of amendments

3.2.Resistance to temperature and voltage changes

From

Last amended in 00 series of amendments

Compliance with the specifications defined under paragraph 3.1 shall also be checked under the following conditions:

Last amended in 00 series of amendments

Compliance with the specifications defined under paragraph 3.1 shall also be checked under the following conditions:

From

Last amended in 00 series of amendments

3.2.1.Test temperature T (-40 ± 2)° C

Last amended in 00 series of amendments

3.2.1.Test temperature T (-40 ± 2)° C

From

Last amended in 00 series of amendments

Test voltageU = (9 ± 0.2) V

Last amended in 00 series of amendments

Test voltageU = (9 ± 0.2) V

From

Last amended in 00 series of amendments

Storage duration4 hours

Last amended in 00 series of amendments

Storage duration4 hours

From

Last amended in 00 series of amendments

3.2.2.For parts to be fitted in the passenger or luggage compartment:

Last amended in 00 series of amendments

3.2.2.For parts to be fitted in the passenger or luggage compartment:

From

Last amended in 00 series of amendments

Test temperatureT = (+85 ± 2)° C

Last amended in 00 series of amendments

Test temperatureT = (+85 ± 2)° C

From

Last amended in 00 series of amendments

Test voltageU = (15 ± 0.2) V

Last amended in 00 series of amendments

Test voltageU = (15 ± 0.2) V

From

Last amended in 00 series of amendments

Storage duration4 hours

Last amended in 00 series of amendments

Storage duration4 hours

From

Last amended in 00 series of amendments

3.2.3.For parts to be fitted in the engine compartment unless otherwise specified:

Last amended in 00 series of amendments

3.2.3.For parts to be fitted in the engine compartment unless otherwise specified:

From

Last amended in 00 series of amendments

Test temperatureT = (+125 ± 2)° C

Last amended in 00 series of amendments

Test temperatureT = (+125 ± 2)° C

From

Last amended in 00 series of amendments

Test voltageU = (15 ± 0.2) V

Last amended in 00 series of amendments

Test voltageU = (15 ± 0.2) V

From

Last amended in 00 series of amendments

Storage duration4 hours

Last amended in 00 series of amendments

Storage duration4 hours

From

Last amended in 00 series of amendments

3.2.4.The immobilizer, in both set and unset state, shall be submitted to an excess voltage equal to (18 ± 0.2) V for 1 hour.

Last amended in 00 series of amendments

3.2.4.The immobilizer, in both set and unset state, shall be submitted to an excess voltage equal to (18 ± 0.2) V for 1 hour.

From

Last amended in 00 series of amendments

3.2.5.The immobilizer, in both set and unset state, shall be submitted to an excess voltage equal to (24 ± 0.2) V for 1 min.

Last amended in 00 series of amendments

3.2.5.The immobilizer, in both set and unset state, shall be submitted to an excess voltage equal to (24 ± 0.2) V for 1 min.

From

Last amended in 00 series of amendments

3.3.Safe operation after foreign body and water-tightness testing

Last amended in 00 series of amendments

3.3.Safe operation after foreign body and water-tightness testing

From

Last amended in 00 series of amendments

After the test for tightness to foreign body and water according to IEC 529-1989, for degrees of protection as in paragraph 1.1.2., the operation tests according to paragraph 3.1. shall be repeated.

Last amended in 00 series of amendments

After the test for tightness to foreign body and water according to IEC 529-1989, for degrees of protection as in paragraph 1.1.2., the operation tests according to paragraph 3.1. shall be repeated.

From

Last amended in 00 series of amendments

With the agreement of the Technical Service this requirement need not apply in the following circumstances:

Last amended in 00 series of amendments

With the agreement of the Technical Service this requirement need not apply in the following circumstances:

From

Last amended in 00 series of amendments

(a)Type Approval of an immobilizer which is to be type approved as a separate technical unit

Last amended in 00 series of amendments

(a)Type Approval of an immobilizer which is to be type approved as a separate technical unit

From

Last amended in 00 series of amendments

In this case, the manufacturer of the immobilizer shall:

Last amended in 00 series of amendments

In this case, the manufacturer of the immobilizer shall:

From

Last amended in 00 series of amendments

(i)Specify in item 4.5. of the information document (Annex 1b), that the requirement of this paragraph was not applied to the immobilizer (in accordance with paragraph 7. of this Regulation), and

Last amended in 00 series of amendments

(i)Specify in item 4.5. of the information document (Annex 1b), that the requirement of this paragraph was not applied to the immobilizer (in accordance with paragraph 7. of this Regulation), and

From

Last amended in 00 series of amendments

(ii)Specify in item 4.1. of the information document, the list of vehicles to which the immobilizer is intended to be fitted and the relevant installation conditions in item 4.2.

Last amended in 00 series of amendments

(ii)Specify in item 4.1. of the information document, the list of vehicles to which the immobilizer is intended to be fitted and the relevant installation conditions in item 4.2.

From

Last amended in 00 series of amendments

(b)Type approval of a vehicle in respect of an immobilizer

Last amended in 00 series of amendments

(b)Type approval of a vehicle in respect of an immobilizer

From

Last amended in 00 series of amendments

In this case, the manufacturer shall specify in item 3.1.1.1. of Annex 1a of the information document (Annex 1a), that the requirement of this paragraph does not apply to the immobilizer due to the nature of installation conditions and the vehicle manufacturer shall prove it by submitting related documents.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

(c)Type approval of a vehicle in respect of the installation of an immobilizer which is type approved as a separate technical unit.

Last amended in 00 series of amendments

(c)Type approval of a vehicle in respect of the installation of an immobilizer which is type approved as a separate technical unit.

From

Last amended in 00 series of amendments

In this case, the vehicle manufacturer shall specify in item 3.1.1.1. of Annex 1a of the information document (Annex 1a), that the requirement of this paragraph does not apply to the installation of the immobilizer where the relevant installation conditions are met.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

This requirement does not apply in cases where the information required in item 3.1.3.1.1. of Annex 1a has already been submitted for the approval of the separate technical unit.

Last amended in 00 series of amendments

This requirement does not apply in cases where the information required in item 3.1.3.1.1. of Annex 1a has already been submitted for the approval of the separate technical unit.

From

Last amended in 00 series of amendments

3.4.Safe operation after condensed water test

Last amended in 00 series of amendments

3.4.Safe operation after condensed water test

From

Last amended in 00 series of amendments

After a resistance-to-humidity test to be carried out according to IEC 68 2 30 (1980) the operation tests according to paragraph 3.1. shall be repeated.

Last amended in 00 series of amendments

After a resistance-to-humidity test to be carried out according to IEC 68 2 30 (1980) the operation tests according to paragraph 3.1. shall be repeated.

From

Last amended in 00 series of amendments

3.5.Test for safety against reversed polarity

Last amended in 00 series of amendments

3.5.Test for safety against reversed polarity

From

Last amended in 00 series of amendments

The immobilizer and components thereof shall not be destroyed by reversed polarity up to 13 V during 2 min. After this test the operation tests according to paragraph 3.1. shall be repeated with fuses changed, if necessary.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

3.6.Test for safety against short-circuits

Last amended in 00 series of amendments

3.6.Test for safety against short-circuits

From

Last amended in 00 series of amendments

All electrical connections of the immobilizer must be short-circuit proof against earth, max. 13 V and/or fused. After this test the operation tests according to paragraph 3.1. shall be repeated, with fuses changed if necessary.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

3.7.Energy consumption in the set condition

Last amended in 00 series of amendments

3.7.Energy consumption in the set condition

From

Last amended in 00 series of amendments

The energy consumption in set condition under the conditions given in paragraph 2.1. shall not exceed 20 mA on average for the complete immobilizer including status display.

Last amended in 00 series of amendments

The energy consumption in set condition under the conditions given in paragraph 2.1. shall not exceed 20 mA on average for the complete immobilizer including status display.

From

Last amended in 00 series of amendments

With the agreement of the Technical Service this requirement need not apply in the following circumstances:

Last amended in 00 series of amendments

With the agreement of the Technical Service this requirement need not apply in the following circumstances:

From

Last amended in 00 series of amendments

(a)Type Approval of an immobilizer which is to be type approved as a separate technical unit

Last amended in 00 series of amendments

(a)Type Approval of an immobilizer which is to be type approved as a separate technical unit

From

Last amended in 00 series of amendments

In this case, the manufacturer of the immobilizer shall:

Last amended in 00 series of amendments

In this case, the manufacturer of the immobilizer shall:

From

Last amended in 00 series of amendments

(i)Specify in item 4.5. of the information document (Annex 1, Part 2), that the requirement of this paragraph was not applied to the immobilizer (in accordance with paragraph 7. of this regulation), and

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

(ii)Specify in item 4.1. of the information document, the list of vehicles to which the immobilizer is intended to be fitted and the relevant installation conditions in item 4.2.

Last amended in 00 series of amendments

(ii)Specify in item 4.1. of the information document, the list of vehicles to which the immobilizer is intended to be fitted and the relevant installation conditions in item 4.2.

From

Last amended in 00 series of amendments

(b)Type approval of a vehicle in respect of an immobilizer

Last amended in 00 series of amendments

(b)Type approval of a vehicle in respect of an immobilizer

From

Last amended in 00 series of amendments

In this case, the manufacturer shall specify in item 3.1.3.1.1. of the information document (Annex 1a), that the requirement of this paragraph does not apply to the immobilizer due to the nature of installation conditions and the vehicle manufacturer shall prove it by submitting related documents.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

(c)Type approval of a vehicle in respect of the installation of an immobilizer which is type approved as a separate technical unit.

Last amended in 00 series of amendments

(c)Type approval of a vehicle in respect of the installation of an immobilizer which is type approved as a separate technical unit.

From

Last amended in 00 series of amendments

In this case, the vehicle manufacturer shall specify in item 3.1.3.1.1. of the information document (Annex 1a), that the requirement of this paragraph does not apply to the installation of the immobilizer where the relevant installation conditions are met.

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

This requirement does not apply in cases where the information required in item 3.1.3.1.1. of Annex 1a has already been submitted for the approval of the separate technical unit.

Last amended in 00 series of amendments

This requirement does not apply in cases where the information required in item 3.1.3.1.1. of Annex 1a has already been submitted for the approval of the separate technical unit.

From

Last amended in 00 series of amendments

3.8.Safe operation after vibration test

Last amended in 00 series of amendments

3.8.Safe operation after vibration test

From

Last amended in 00 series of amendments

3.8.1.For this test, the components are subdivided into two types:

Last amended in 00 series of amendments

3.8.1.For this test, the components are subdivided into two types:

From

Last amended in 00 series of amendments

Type 1: components normally mounted on the vehicle,

Last amended in 00 series of amendments

Type 1: components normally mounted on the vehicle,

From

Last amended in 00 series of amendments

Type 2: components intended for attachment to the engine.

Last amended in 00 series of amendments

Type 2: components intended for attachment to the engine.

From

Last amended in 00 series of amendments

3.8.2.The components/immobilizer shall be submitted to a sinusoidal vibration mode whose characteristics are as follows:

Last amended in 00 series of amendments

3.8.2.The components/immobilizer shall be submitted to a sinusoidal vibration mode whose characteristics are as follows:

From

Last amended in 00 series of amendments

3.8.2.1.For Type 1

Last amended in 00 series of amendments

3.8.2.1.For Type 1

From

Last amended in 00 series of amendments

The frequency shall be variable from 10 Hz to 500 Hz with a maximum amplitude of ± 5 mm and maximum acceleration of 3 g (0-peak).

Last amended in 00 series of amendments

The frequency shall be variable from 10 Hz to 500 Hz with a maximum amplitude of ± 5 mm and maximum acceleration of 3 g (0-peak).

From

Last amended in 00 series of amendments

3.8.2.2.For Type 2

Last amended in 00 series of amendments

3.8.2.2.For Type 2

From

Last amended in 00 series of amendments

The frequency shall be variable from 20 Hz to 300 Hz with a maximum amplitude of ± 2 mm and maximum acceleration of 15 g (0-peak).

Last amended in 00 series of amendments

The frequency shall be variable from 20 Hz to 300 Hz with a maximum amplitude of ± 2 mm and maximum acceleration of 15 g (0-peak).

From

Last amended in 00 series of amendments

3.8.2.3.For both type 1 and type 2

Last amended in 00 series of amendments

3.8.2.3.For both type 1 and type 2

From

Last amended in 00 series of amendments

The frequency variation is 1 octave/min.

Last amended in 00 series of amendments

The frequency variation is 1 octave/min.

From

Last amended in 00 series of amendments

The number of cycle is 10, the test shall be performed along each of the 3 axes.

Last amended in 00 series of amendments

The number of cycle is 10, the test shall be performed along each of the 3 axes.

From

Last amended in 00 series of amendments

The vibrations are applied at low frequencies at a maximum constant amplitude and at a maximum constant acceleration at high frequencies.

Last amended in 00 series of amendments

The vibrations are applied at low frequencies at a maximum constant amplitude and at a maximum constant acceleration at high frequencies.

From

Last amended in 00 series of amendments

3.8.3.During the test the immobilizer shall be electrically connected and the cable shall be supported after 200 mm.

Last amended in 00 series of amendments

3.8.3.During the test the immobilizer shall be electrically connected and the cable shall be supported after 200 mm.

From

Last amended in 00 series of amendments

3.8.4.After the vibration test the operation tests according to paragraph 3.1. shall be repeated.

Last amended in 00 series of amendments

3.8.4.After the vibration test the operation tests according to paragraph 3.1. shall be repeated.

From

Last amended in 00 series of amendments

3.9.Electromagnetic compatibility

Last amended in 00 series of amendments

3.9.Electromagnetic compatibility

From

Last amended in 00 series of amendments

The immobilizer shall be submitted to the tests described in Annex 7.

Last amended in 00 series of amendments

The immobilizer shall be submitted to the tests described in Annex 7.

From

Last amended in 00 series of amendments

Annex 7
Electromagnetic compatibility

Last amended in 00 series of amendments

Annex 7
Electromagnetic compatibility

From

Last amended in 00 series of amendments

1.Immunity against disturbances conducted along supply lines

Last amended in 00 series of amendments

1.Immunity against disturbances conducted along supply lines

From

Last amended in 00 series of amendments

1.1.Tests shall be performed according to the technical prescriptions and transitional provisions of Regulation No. 10.06 series of amendments and according to the test methods described in Annex 10 for an Electrical/Electronic Sub-Assembly (ESA).

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

1.2.The immobilizer shall be tested in unset state and in set state

Last amended in 00 series of amendments

1.2.The immobilizer shall be tested in unset state and in set state

From

Last amended in 00 series of amendments

2.Immunity against radiated high frequency disturbances

Last amended in 00 series of amendments

2.Immunity against radiated high frequency disturbances

From

Last amended in 00 series of amendments

2.1.Testing of the immunity of an immobilizer in a vehicle may be performed according to the technical prescriptions and transitional provisions of Regulation No. 10, 06 series of amendments and test methods described in Annex 6 for the vehicles or Annex 9 foran Electrical/Electronic Sub-Assembly (ESA)

Last amended in 00 series of amendments

From

Last amended in 00 series of amendments

2.2.The immobilizer shall be tested with operating conditions and failure criteria as defined in table 1

Last amended in 00 series of amendments

2.2.The immobilizer shall be tested with operating conditions and failure criteria as defined in table 1

From

Last amended in 00 series of amendments

Table 1 Operating conditions and failure criteria for immobilizer

Last amended in 00 series of amendments

Table 1 Operating conditions and failure criteria for immobilizer

From

Last amended in 00 series of amendments

Test type	Immobilizer operating conditions	Failure criteria

Vehicle test	Immobilizer in unset state Key ON or Vehicle at 50 km/h ⁽¹⁾	Unexpected activation of the immobilizer
	Immobilizer in set state Key OFF	Unexpected deactivation of the immobilizer
	Immobilizer in set state Vehicle in charging mode (if applicable)	Unexpected deactivation of the immobilizer
ESA Test	Immobilizer in unset state	Unexpected activation of the immobilizer
ESA Test	Immobilizer in set state	Unexpected deactivation of the immobilizer
(1) This test can be covered by the UN Regulation No. 10 50 km/h mode

Last amended in 00 series of amendments

Test type	Immobilizer operating conditions	Failure criteria

Vehicle test	Immobilizer in unset state Key ON or Vehicle at 50 km/h ⁽¹⁾	Unexpected activation of the immobilizer
	Immobilizer in set state Key OFF	Unexpected deactivation of the immobilizer
	Immobilizer in set state Vehicle in charging mode (if applicable)	Unexpected deactivation of the immobilizer
ESA Test	Immobilizer in unset state	Unexpected activation of the immobilizer
ESA Test	Immobilizer in set state	Unexpected deactivation of the immobilizer
(1) This test can be covered by the UN Regulation No. 10 50 km/h mode

From

Last amended in 00 series of amendments

3.Electrical disturbance from electrostatic discharges

Last amended in 00 series of amendments

3.Electrical disturbance from electrostatic discharges

From

Last amended in 00 series of amendments

3.1.Immunity against electrical disturbances shall be tested in accordance with Technical ISO 10605-2008 + corrigendum:2010 + AMD1:2014 using the test severity levels from table 2.

Last amended in 00 series of amendments

3.1.Immunity against electrical disturbances shall be tested in accordance with Technical ISO 10605-2008 + corrigendum:2010 + AMD1:2014 using the test severity levels from table 2.

From

Last amended in 00 series of amendments

3.2.ESD tests shall be performed either at vehicle level or at Electrical/Electronic Sub-Assembly (ESA) level.

Last amended in 00 series of amendments

3.2.ESD tests shall be performed either at vehicle level or at Electrical/Electronic Sub-Assembly (ESA) level.

From

Last amended in 00 series of amendments

Table 2 ESD Test levels

Last amended in 00 series of amendments

Table 2 ESD Test levels

From

Last amended in 00 series of amendments

Discharge type	Discharge points	Immobilizer state	Discharge network	Test Level	Failure criteria

Air discharge	Points that can easily be accessed only from the inside of the vehicle	Immobilizer in unset state (if test performed on vehicle then vehicle shall be Key ON or Vehicle at 50 km/h or engine in idle mode)	330 pF, 2 kΩ	± 6 kV	Unexpected activation of the immobilizer
Air discharge	Points that can easily be touched only from the outside of the vehicle	Immobilizer in set state (if test performed on vehicle then vehicle shall be locked and Key OFF)	150 pF, 2 kΩ	± 15 kV	Unexpected deactivation of the immobilizer without reactivation, within 1s, after each discharge
Contact discharge	Points that can easily be accessed only from the inside of the vehicle	Immobilizer in unset state (if test performed on vehicle then vehicle shall be Key ON or Vehicle at 50 km/h or engine in idle mode)	330 pF, 2 kΩ	± 4 kV	Unexpected activation of the immobilizer
Contact discharge	Points that can easily be touched only from the outside of the vehicle	Immobilizer in set state (if test performed on vehicle then vehicle shall be locked and Key OFF)	150 pF, 2 kΩ	± 8 kV	Unexpected deactivation of the immobilizer without reactivation, within 1s, after each discharge
Each test shall be performed with 3 discharges with a minimum of 5 s interval between each discharge

Last amended in 00 series of amendments

Discharge type	Discharge points	Immobilizer state	Discharge network	Test Level	Failure criteria

Air discharge	Points that can easily be accessed only from the inside of the vehicle	Immobilizer in unset state (if test performed on vehicle then vehicle shall be Key ON or Vehicle at 50 km/h or engine in idle mode)	330 pF, 2 kΩ	± 6 kV	Unexpected activation of the immobilizer
Air discharge	Points that can easily be touched only from the outside of the vehicle	Immobilizer in set state (if test performed on vehicle then vehicle shall be locked and Key OFF)	150 pF, 2 kΩ	± 15 kV	Unexpected deactivation of the immobilizer without reactivation, within 1s, after each discharge
Contact discharge	Points that can easily be accessed only from the inside of the vehicle	Immobilizer in unset state (if test performed on vehicle then vehicle shall be Key ON or Vehicle at 50 km/h or engine in idle mode)	330 pF, 2 kΩ	± 4 kV	Unexpected activation of the immobilizer
Contact discharge	Points that can easily be touched only from the outside of the vehicle	Immobilizer in set state (if test performed on vehicle then vehicle shall be locked and Key OFF)	150 pF, 2 kΩ	± 8 kV	Unexpected deactivation of the immobilizer without reactivation, within 1s, after each discharge
Each test shall be performed with 3 discharges with a minimum of 5 s interval between each discharge

From

Last amended in 00 series of amendments

4.Radiated emissions

Last amended in 00 series of amendments

4.Radiated emissions

From

Last amended in 00 series of amendments (supplement 5)

Tests shall be performed according to the technical prescriptions and transitional provisions of UN Regulation No. 10, 06 series of amendments prescriptions and according to the test methods described in Annexes 4 and 5 for vehicles or Annexes 7 and 8, for an Electrical/Electronic Sub-Assembly (ESA).

Last amended in 00 series of amendments (supplement 5)

From

Last amended in 00 series of amendments (supplement 5)

The locking system shall be in set state.

Last amended in 00 series of amendments (supplement 5)

The locking system shall be in set state.

From

Last amended in 00 series of amendments (supplement 1)

Annex 8
(Reserved)

Last amended in 00 series of amendments (supplement 1)

Annex 8
(Reserved)

From

Last amended in 00 series of amendments (supplement 1)

Annex 9
Safety provisions for digital keys

Last amended in 00 series of amendments (supplement 1)

Annex 9
Safety provisions for digital keys

From

Last amended in 00 series of amendments (supplement 1)

1.General

Last amended in 00 series of amendments (supplement 1)

1.General

From

Last amended in 00 series of amendments (supplement 1)

The purpose of this annex is to specify the requirements for documentation and verification for digital keys used to operate the ‘device to prevent unauthorized use’ of the vehicle.

Last amended in 00 series of amendments (supplement 1)

The purpose of this annex is to specify the requirements for documentation and verification for digital keys used to operate the ‘device to prevent unauthorized use’ of the vehicle.

From

Last amended in 00 series of amendments (supplement 1)

2.Definitions

Last amended in 00 series of amendments (supplement 1)

2.Definitions

From

Last amended in 00 series of amendments (supplement 1)

2.1."Authorization process" means any method to provide the digital key which can operate the ‘device to prevent unauthorized use’ of the vehicle.

Last amended in 00 series of amendments (supplement 1)

2.1."Authorization process" means any method to provide the digital key which can operate the ‘device to prevent unauthorized use’ of the vehicle.

From

Last amended in 00 series of amendments (supplement 1)

2.2."Revocation process" means any method to prevent the digital key to operate the ‘device to prevent unauthorized use’ of the vehicle.

Last amended in 00 series of amendments (supplement 1)

2.2."Revocation process" means any method to prevent the digital key to operate the ‘device to prevent unauthorized use’ of the vehicle.

From

Last amended in 00 series of amendments (supplement 1)

2.3."Boundary of functional operation" defines the boundaries of the external physical limits (e.g. distance) within which the digital key is able to operate the ‘device to prevent unauthorized use’ of the vehicle.

Last amended in 00 series of amendments (supplement 1)

From

Last amended in 00 series of amendments (supplement 1)

3.Documentation

Last amended in 00 series of amendments (supplement 1)

3.Documentation

From

Last amended in 00 series of amendments (supplement 1)

The vehicle manufacturer shall provide the following documentation for type approval:

Last amended in 00 series of amendments (supplement 1)

The vehicle manufacturer shall provide the following documentation for type approval:

From

Last amended in 00 series of amendments (supplement 1)

3.1.A description of the authorization process.

Last amended in 00 series of amendments (supplement 1)

3.1.A description of the authorization process.

From

Last amended in 00 series of amendments (supplement 1)

3.2.A description of the revocation process.

Last amended in 00 series of amendments (supplement 1)

3.2.A description of the revocation process.

From

Last amended in 00 series of amendments (supplement 1)

3.3.A description of the boundary of functional operation.

Last amended in 00 series of amendments (supplement 1)

3.3.A description of the boundary of functional operation.

From

Last amended in 00 series of amendments (supplement 1)

3.4.A description of the safety measures designed within the digital key revocation process to ensure safe operation of the vehicle.

Last amended in 00 series of amendments (supplement 1)

3.4.A description of the safety measures designed within the digital key revocation process to ensure safe operation of the vehicle.

From

Last amended in 00 series of amendments (supplement 1)

4.Requirements for Safe Operation

Last amended in 00 series of amendments (supplement 1)

4.Requirements for Safe Operation

From

Last amended in 00 series of amendments (supplement 1)

4.1.A digital key shall only be transferred to a device via the authorization process.

Last amended in 00 series of amendments (supplement 1)

4.1.A digital key shall only be transferred to a device via the authorization process.

From

Last amended in 00 series of amendments (supplement 1)

4.2.There shall be a revocation process.

Last amended in 00 series of amendments (supplement 1)

4.2.There shall be a revocation process.

From

Last amended in 00 series of amendments (supplement 1)

4.2.1.Revocation of a digital key shall not result in an unsafe condition.

Last amended in 00 series of amendments (supplement 1)

4.2.1.Revocation of a digital key shall not result in an unsafe condition.

From

Last amended in 00 series of amendments (supplement 1)

A risk reduction analysis using functional safety standard such as ISO 26262 and safety of the intended functionality standard such as ISO/PAS 21448, which documents the risk to vehicle occupants caused by revocation of a digital key and documents the reduction of risk resulting from implementation of the identified risk mitigation functions or characteristics.

Last amended in 00 series of amendments (supplement 1)

From

Last amended in 00 series of amendments (supplement 1)

4.2.2.It shall be possible for the primary user(s) to identify the number of authorized registered digital keys.

Last amended in 00 series of amendments (supplement 1)

4.2.2.It shall be possible for the primary user(s) to identify the number of authorized registered digital keys.

From

Last amended in 00 series of amendments (supplement 1)

4.3.Boundary of functional operation for the device to prevent unauthorized use:

Last amended in 00 series of amendments (supplement 1)

4.3.Boundary of functional operation for the device to prevent unauthorized use:

From

Last amended in 00 series of amendments (supplement 3)

4.3.1.Unsetting of the immobilizer shall require that an authorized registered digital key is detected in the interior of the vehicle, or that an actuation is triggered by user intent in close proximity of the vehicle.

Last amended in 00 series of amendments (supplement 3)

From

Last amended in 00 series of amendments (supplement 3)

The limitation of the distance for unsetting of the immobilizer by detection in the interior of the vehicle shall be verified using the following procedure including a tolerance of 2000 mm around the vehicle perimeter:

Last amended in 00 series of amendments (supplement 3)

From

Last amended in 00 series of amendments (supplement 3)

(a)The vehicle shall be parked in a secure condition in unobstructed free field condition, this means engine off and all windows, doors and roof shall be closed.

Last amended in 00 series of amendments (supplement 3)

(a)The vehicle shall be parked in a secure condition in unobstructed free field condition, this means engine off and all windows, doors and roof shall be closed.

From

Last amended in 00 series of amendments (supplement 3)

(b)The vehicle manufacturer will provide a typical user device for test in agreement with the technical service. The digital key device battery state of charge shall be at maximum.

Last amended in 00 series of amendments (supplement 3)

(b)The vehicle manufacturer will provide a typical user device for test in agreement with the technical service. The digital key device battery state of charge shall be at maximum.

From

Last amended in 00 series of amendments (supplement 3)

(c)The technical service will define four test points around the vehicle perimeter at a distance not less than 2000 mm. Distance means the distance between the nearest point of the motor vehicle and the user device.

Last amended in 00 series of amendments (supplement 3)

From

Last amended in 00 series of amendments (supplement 3)

(d)The user device is placed at each of the test points. During the attempt to operate the vehicle under its own power, the vehicle door shall be closed. If at one of the test points the vehicle can be operated under its own power, the requirement is not met.

Last amended in 00 series of amendments (supplement 3)

From

Last amended in 00 series of amendments (supplement 1)

4.3.2.The requirements in paragraph 4.3.1. shall not apply during a remote control manoeuvring and remote control parking as defined in UN Regulation No. 79.

Last amended in 00 series of amendments (supplement 1)

4.3.2.The requirements in paragraph 4.3.1. shall not apply during a remote control manoeuvring and remote control parking as defined in UN Regulation No. 79.

From

Last amended in 00 series of amendments (supplement 1)

4.4.Detailed information shall be contained in the owner's manual of the vehicle, or by any other communication means in the vehicle; as a minimum, this information shall include:

Last amended in 00 series of amendments (supplement 1)

4.4.Detailed information shall be contained in the owner's manual of the vehicle, or by any other communication means in the vehicle; as a minimum, this information shall include:

From

Last amended in 00 series of amendments (supplement 1)

(a)The method(s) for authorization of the digital key;

Last amended in 00 series of amendments (supplement 1)

(a)The method(s) for authorization of the digital key;

From

Last amended in 00 series of amendments (supplement 1)

(b)The method(s) for revocation of the digital key.

Last amended in 00 series of amendments (supplement 1)

(b)The method(s) for revocation of the digital key.

From

Last amended in 00 series of amendments (supplement 1)

5.The effectiveness of the system shall not be adversely affected by cyber-attacks, cyber threats and vulnerabilities. The effectiveness of the security measures shall be demonstrated by compliance with UN Regulation No. 155.

Last amended in 00 series of amendments (supplement 6)

From

Last amended in 00 series of amendments (supplement 1)

6.Verification

Last amended in 00 series of amendments (supplement 1)

6.Verification

From

Last amended in 00 series of amendments (supplement 1)

Verification of the functionality of the digital key shall be conducted with support of manufacturer's documentation as specified in paragraph 3.

Last amended in 00 series of amendments (supplement 1)

Verification of the functionality of the digital key shall be conducted with support of manufacturer's documentation as specified in paragraph 3.

From

Last amended in 00 series of amendments (supplement 1)

7.Competence of the auditors/assessors

Last amended in 00 series of amendments (supplement 1)

7.Competence of the auditors/assessors

From

Last amended in 00 series of amendments (supplement 1)

The assessments under this Annex shall only be conducted by auditors/assessors with the technical and administrative knowledge necessary for such purposes. They shall in particular be competent as auditor/assessor for ISO 26262-2018 (Functional Safety - Road Vehicles), and ISO/PAS 21448 (Safety of the Intended Functionality of road vehicles); and shall be able to make the necessary link with cybersecurity aspects in accordance with UN Regulation No 155. and ISO/SAE 21434). This competence should be demonstrated by appropriate qualifications or other equivalent training records.

Last amended in 00 series of amendments (supplement 1)

1. Scope

1. Scope

2. Definitions

2. Definitions

3. Application for approval

3. Application for approval

4. Approval

4. Approval

5. Specifications

5. Specifications

6. Modification of the type and extension of approval

6. Modification of the type and extension of approval

7. Conformity of production

7. Conformity of production

8. Penalties for non-conformity of production

8. Penalties for non-conformity of production

9. Production definitively discontinued

9. Production definitively discontinued

10. Names and addresses of Technical Services responsible for conducting approval tests, and of Type Approval Authorities

10. Names and addresses of Technical Services responsible for conducting approval tests, and of Type Approval Authorities

Annex 1aInformation document

Annex 1aInformation document

Annex 1bInformation document

Annex 1bInformation document

Annex 2aCommunication

Annex 2aCommunication

Annex 2bCommunication

Annex 2bCommunication

Annex 3Arrangements of approval marks

Annex 3Arrangements of approval marks

Annex 4Model of certificate of conformity

Annex 4Model of certificate of conformity

Annex 5Model of installation certificate

Annex 5Model of installation certificate

Annex 6Operation parameters and test conditions for an immobilizer

Annex 6Operation parameters and test conditions for an immobilizer

Annex 7Electromagnetic compatibility

Annex 7Electromagnetic compatibility

Annex 8(Reserved)

Annex 8(Reserved)

Annex 9Safety provisions for digital keys

Annex 9Safety provisions for digital keys

Annex 1a
Information document

Annex 1a
Information document

Annex 1b
Information document

Annex 1b
Information document

Annex 2a
Communication

Annex 2a
Communication

Annex 2b
Communication

Annex 2b
Communication

Annex 3
Arrangements of approval marks

Annex 3
Arrangements of approval marks

Annex 4
Model of certificate of conformity

Annex 4
Model of certificate of conformity

Annex 5
Model of installation certificate

Annex 5
Model of installation certificate

Annex 6
Operation parameters and test conditions for an immobilizer

Annex 6
Operation parameters and test conditions for an immobilizer

Annex 7
Electromagnetic compatibility

Annex 7
Electromagnetic compatibility

Annex 8
(Reserved)

Annex 8
(Reserved)

Annex 9
Safety provisions for digital keys

Annex 9
Safety provisions for digital keys
